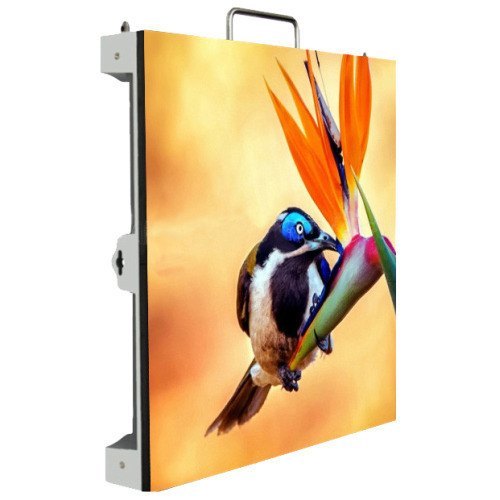

Indoor Outdoor LED Wall

Minimum Order Quantity

01 Piece

Body Material

Aluminum

Screen Dimensions

customized

Display Function

Animation,Graphics,Video

Pixel

10mm

Character Size

editable

Display Technology

Dot Matrix,Square Matrix

Model

p10

Module Resolution

32*16

Shape

Rectangle

Voltage

220-240 V AC

Frequency

50 Hz

Operating Temperature

-5 to 65 d

Warranty

3 Years

Font Styles Supported

Bold

IP Rating

IP 65

Waterproof

Yes

Color

full color

Pixel Pitch

 3 mm

Pixel Configuration

3in1 (1R1PG1B)

Module Size(MM)

 192*192

Module Resolution(Dots)

64*64

Module Weight(Kg)

0.3

Package LED Mode

 SMD2121

Max Power(Watt)

 21

Pixel Density(Dots/SQM)

 111'111

Driving Method

Constant Current Driving

Scan Method(Scan)

 1/32

Interface Way

HUB 75

Brightness(CD/SQM)

≥ 1800

Safety Standard

CCC,FCC,ROHS,TUV,CE,ETL,UL,BIS.....

Unit Cabinet Specifications

Cabinet Size(MM)

576*576

Cabinet Composing(PCS)

9

Power Supply Mode(Per Cabinet)

5V60A

Cabinet Resolution(Dots)

 192*192

Optimal Viewing Distance(M)

3-300

Optimal Viewing Angle

Horizontal angle: 160 degree; Vertical angle: 140 degree

Environment Temperature

Storage: -40 degree ~ +85 degree; Work: -20 degree ~ +60 degree

Relative Humidity

10% ~ 95%

Power Supply Specifications

Operating Voltage

AC:100V~120V AC:220~240V

Average Power(W/SQM)

150-350

Max Power Consumption(W/SQM)

 ≤ 800

Current

≤ 20mA (single LED)

Control System Specifications

Computer

Pentium4 or above P4 or above

Operate System

Win7-11/2000/NT/XP

Control Mode

Synchronization with PC

Main Technical Parameter Specifications

Driving Device

Constant Current Driving

Refresh Rate

≥ 1900-3840Hz

Gray/Color

RGB each 256 grade, can display 16.7color

Lifespan

≥ 100000 hours

Power Switch

RGX Automatic Switch

Display Mode

2048*1024\1024*768\1280*960mm
